MIKROTEK SERVICES

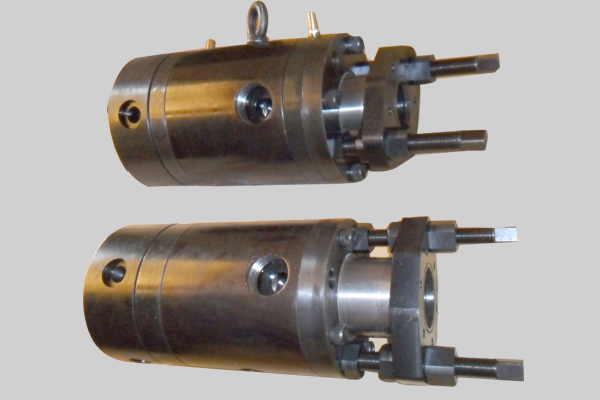

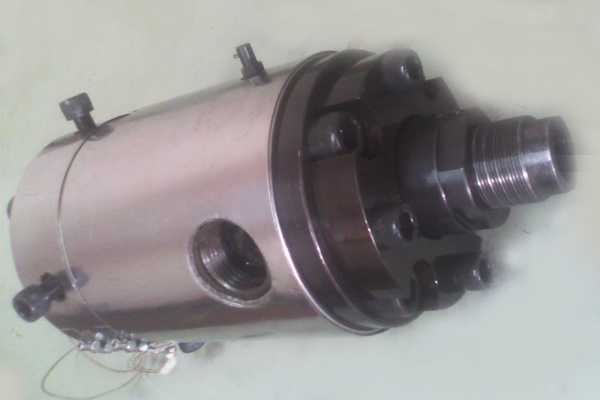

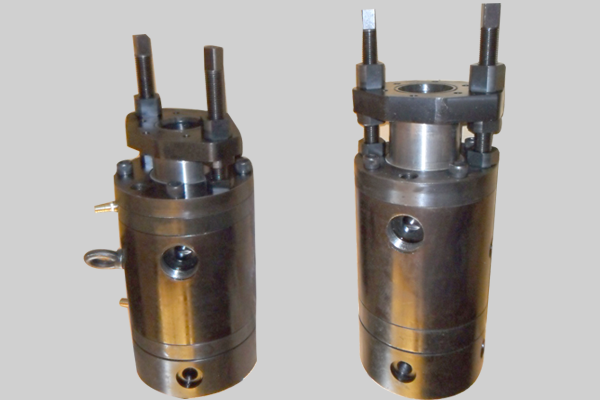

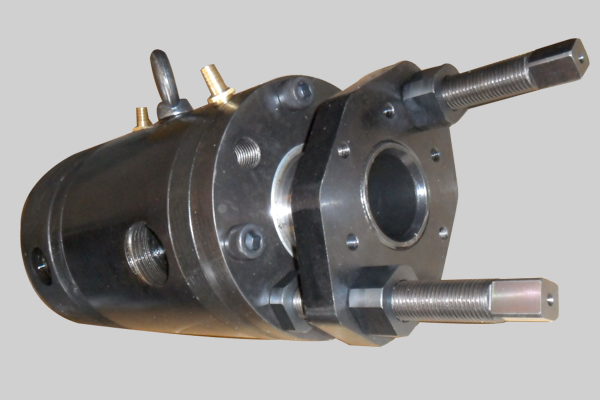

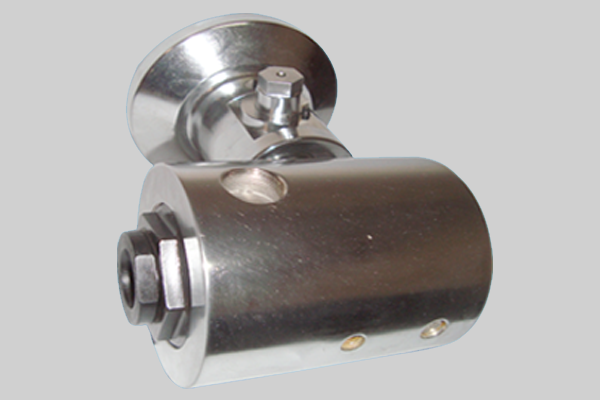

CROSSHEADS
We manufacture wide variety of Crossheads (both fixed center and manual centering) for the smallest cable of 0.8 mm up to 100 mm. This includes both single and double insulation. Systems are produced to suit any existing extruder as per the customer specification.
Crossheads are made for Single, Dual and Triple Insulation.
They are available with both manual centering and fixed center.
Each crosshead is designed for optimum plastic utilization and ease of handling.
Manufactured with most suitable raw material based on the application.
Designed to give uniform distribution Wide range to choose from to suit the cable size and configuration.
| CROSSHEAD | MAX CONDUCTOR | MAX INUSLATION | SINGLE INS | DUAL INS | FIXED CENTER | MANUAL CENTER |
|---|---|---|---|---|---|---|
| MCH 4-6 | 4 MM | 6 MM |  |
|
|
|
| MCH 14-20 | 14 MM | 20 MM | |
|
|
|
| MCH 25-35 | 25 MM | 35 MM | |
|
|
|
| MCH 45-55 | 45 MM | 55 MM | |
|
 |
|
| MCH 65-75 | 65 MM | 75 MM | |
|
|
|
| MCH 90-100 | 90 MM | 100 MM | |
|
|
|
| MCH 100-125 | 100 MM | 125 MM | |
|
|
|
Available
Not Available.
